Tutorial 6: Advanced Rendering

Objective: Learn how to use different rendering techniques for varying quality/performance trade-offs.

What you’ll learn:

• Rasterization vs Ray Tracing vs Path Tracing

• Configuring render modes in MetaSim

• When to use each rendering technique

Prerequisites: Completed Tutorial 5: Hybrid Simulation

Estimated time: 20 minutes

---

MetaSim supports multiple rendering techniques through Isaac Sim’s rendering backend. Choose based on your quality vs performance requirements.

Technique	Quality	Speed	Use Case
Rasterization	Good	Fast	Training, real-time
Ray Tracing	Great	Medium	Validation, demos
Path Tracing	Best	Slow	Final renders, sim2real

Running the Tutorial

python get_started/6_advanced_rendering.py  --render.mode=[rasterization|raytracing|pathtracing]

you can also render in the headless mode by adding --headless flag. By using this, there will be no window popping up and the rendering will also be faster.

By running the above command, you will simulate a hybrid system and it will automatically record a video. Here we demonstrate how to use one simulator for physics simulation and another simulator for rendering.

Examples

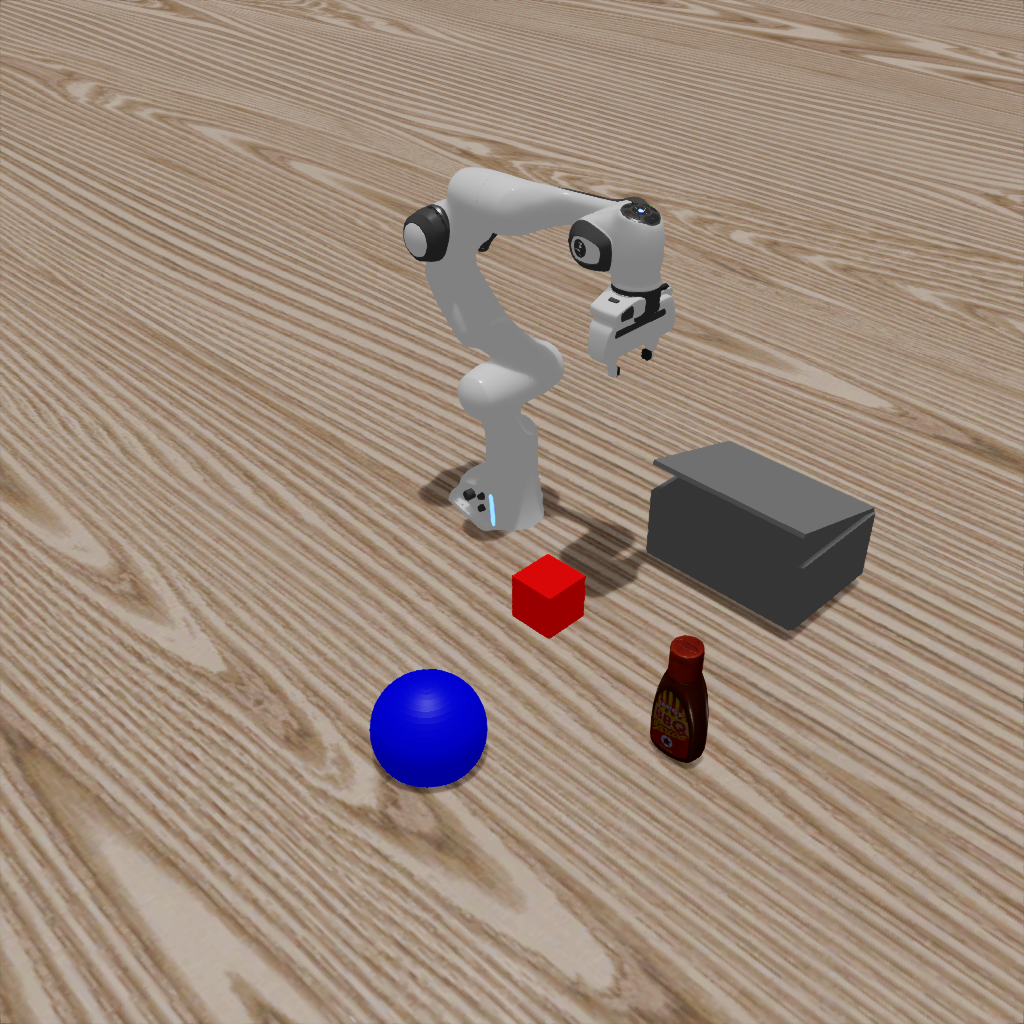

Ray Tracing

python get_started/6_advanced_rendering.py  --render.mode=raytracing

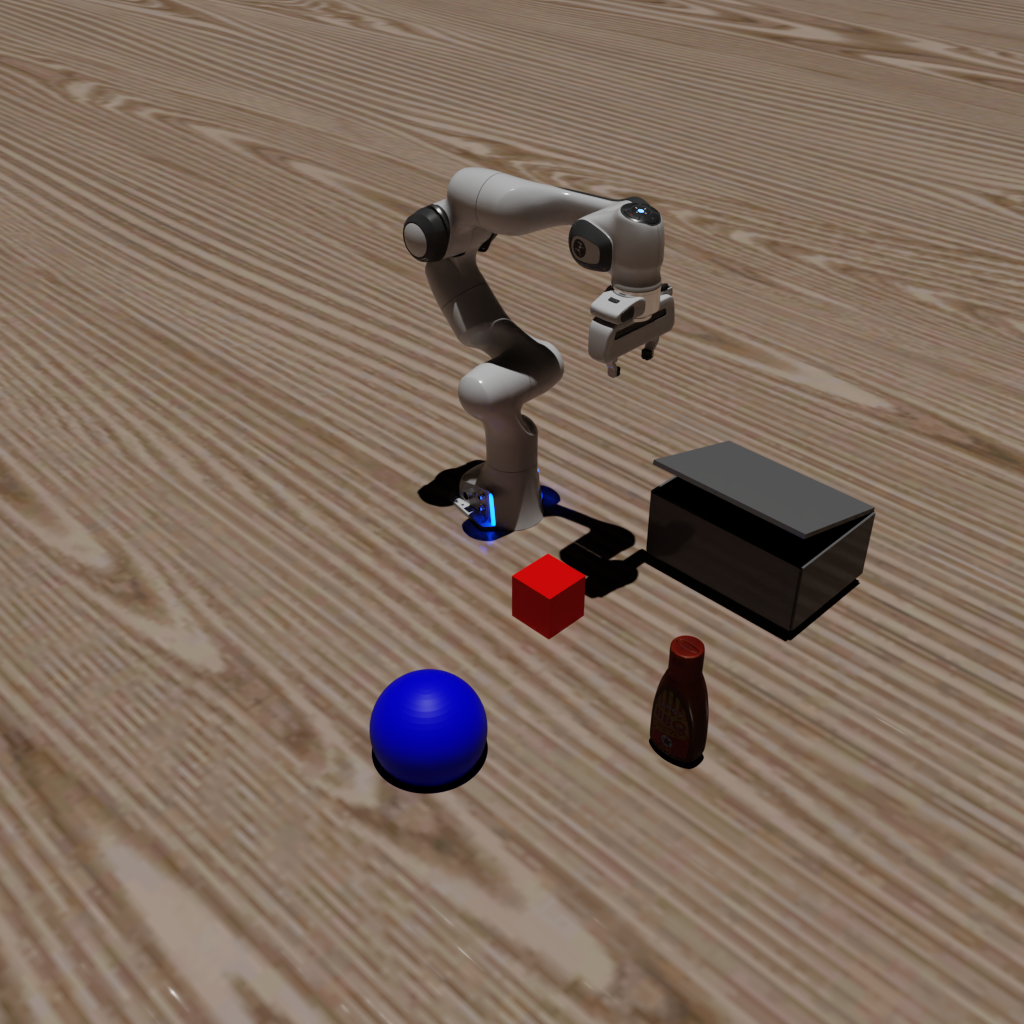

Path Tracing

python get_started/6_advanced_rendering.py  --render.mode=pathtracing

You will get the following images:

Ray Tracing	Path Tracing
